I.M.S

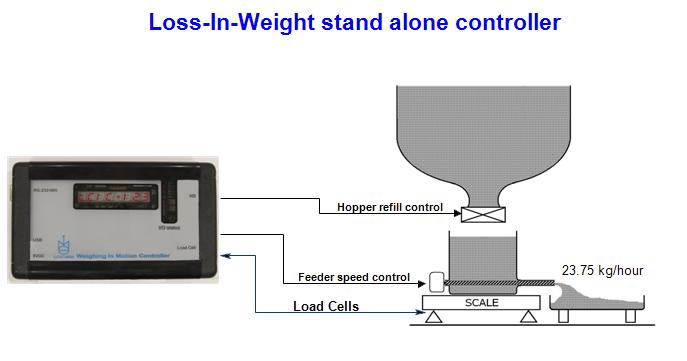

The LCIC-WIM with the embedded Loss-In-Weight algorithm was designed to function as a Universal Loss-In-Weight controller. This controller was designed based on our 15 years experience in this particular field, where our previous generations of controllers are working at customer's sites for a very long period of time to their full satisfaction.

Each LCIC-WIM board controls one feeder where each feeder can be a standard screw-feeder, vibrator or a pump to continuously deliver the required amount of material per given time ex. kg/hour.

Together with our supplied LIW-Manager PC application, it delivers full flexibility to handle either single feeder or multiple feeders for master/slave premix.

Main features:

•     Provides comprehensive control capability for single or multi feeders
•     Accompanied with a user friendly PC application to handle the full process
•      Universal and friendly, allows selecting standard  feeders and scales
•     No need for special load cells, uses standard analog load cells
•      Very fast and accurate versus most common controllers
•     Set-points remote controlled via a standard serial communication and I/O
•      PC application fits also touch-screen PC panel
•      Auto learn of feeders throughput, smart auto-refill algorithm to achieve maximum accuracy, material totalizer, real-time process  displayed in numerical and graphic mode, auto- save log file for easy history tracking, smart error mechanism to avoid user's mistake and much more.

• Load cells and I/O: Very high speed sampling with 24bit internal resolution. Supports all standard strain-gage based load cells. For more details please refer to our LCIC-WIM board specifications

• Refill: Controlled directly by the board output

• Feeder speed: Controlled by the on-board analog output (16 bit resolution)

• Communication: RS-232/485 or USB

• PC application: Requires basic PC with Windows XP operating system. Supports touch screen PC panel.
