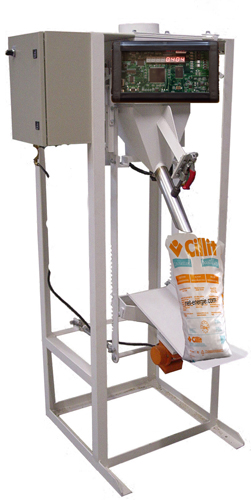

The LCIC-WIM comes equipped with sophisticated embedded software to handle batching functions like bag/sack filler. Taking advantage of the ultra fast sampling rate, high accuracy A/D and the powerful processor on the board, it can handle most net-weight applications and especially when fast filling is needed.The on board 4 outputs and 4 inputs provide all necessary I/O for the controller; while the on board display provides the user with all the essential information.
Main features:
- Works as stand-alone controller, doesn't need any PC connection in the field
- Very easy to install, comes with all necessary utilities
- Excellent solution to upgrade or retrofit old filling machines
- Option to fill in 1 or 2 speeds
- 3 programmable set-points on the controller to choose from
- Option to fill by weight or by time
- Auto correction for in-flight material helps to reduce giveaway material
- Auto-tare and auto zero
- Built in alarms like tare acceptable range, max. allowed fill time and more
- Full communication via USB / RS232/485 with external PC to collect the filling dat
